1280x1024/640x512 rezo ak dijital doub pwodiksyon SWIR kamera modil
Spesifikasyon
Modèl | SG - SWZ12ND2 - 17510 | SG - SWZ06ND2 - 17510 | |
Capteur | Capteur imaj | 1/2 ″ Sony Ingaas Global Panno Swir Capteur IMX990 | 1/4 ″ Sony Ingaas Global Panno Swir Capteur IMX991 |
| Piksèl efikas | Approx. 1.34MP | Approx. 0.34MP | |
| Gwosè pixel | 5μm | ||
Lanti | Repons longèdonn | 1000 ~ 1700Nm | |
| ICR | Sipò | ||
| Longè fokal | 17mm ~ 510mm, 30x rale optik | ||
| Ouverture | F2.8 ~ f5.5 | ||
| Jaden de vi | H: 21.3 ° ~ 0.71 °, V: 17.1 ° ~ 0.57 °, D: 27.1 ° ~ 0.92 ° | H: 11.6 ° ~ 0.37 °, V: 9.3 ° ~ 0.3 °, D: 14.8 ° ~ 0.47 ° | |
| Fèmen distans konsantre | 1m ~ 10m (lajè ~ tele) | ||
| Vitès rale | Approx. 7s (optik lajè ~ tele) | ||
Videyo | Konpresyon | H.265/H.264/H.264H/MJPEG | |
| Rezolisyon | 25/30/50/60fps@1280 × 1024 | 25/30/50/60fps@640 × 512 | |
| Pousantaj ti jan videyo | 32kbps ~ 16mbps | ||
| Oto | AAC / MP2L2 | ||
| LVDS Videyo | 25/30/50/60fps@2MP (1920 × 1080) | ||
Rezo | Stokaj | Kat TF (256 GB), ftp, NAS | |
| Pwotokòl Rezo | ONVIF, HTTP, HTTPS, IPV4, IPV6, RTSP, DDNS, RTP, TCP, UDP | ||
| Multikast | Soutni | ||
| Firmwèr ajou (LVDs) | Se sèlman ka ajou firmwèr la atravè pò rezo | ||
| Evènman Jeneral | Mouvman, manipilasyon, kat SD, rezo | ||
| Iv | Tripwire, deteksyon kwa kloti, entrizyon, objè abandone, vit - k ap deplase, deteksyon pakin, estimasyon rasanbleman foul moun, ki manke objè, deteksyon flannen. | ||
| Rediksyon bri | 2d/3d | ||
| Mòd ekspoze | Manyèl, Auto, Priyorite Ouverture, Priyorite Panno | ||
| Konpansasyon Ekspozisyon | Soutni | ||
| Vitès vole | 1/1 ~ 1/30000s | ||
| Mòd konsantre | Auto/Manyèl/Semi Auto | ||
| Elektwonik defog | Soutni | ||
| Chalè rediksyon brouyar | Soutni | ||
| Fini | Soutni | ||
| EIS | Soutni | ||
| Digital Zoom | 16x | ||
| Kontwòl ekstèn | TTL | ||
| Koòdone | 4pin Ethernet Port, 6pin Serial & Power Port, 5Pin Audio Port.30pin LVDS | ||
| Pwotokòl Kominikasyon | Sony viska, pleco d/p | ||
| Kondisyon opere | - 30 ~+60 ° C/20%~ 80%RH | ||
| Kondisyon depo | - 40 ~+70 ° C/20%~ 95%RH | ||
| Ekipman pou pouvwa | DC 12V | ||
| Konsomasyon pouvwa (TBD) | AVG: 6W; Max: 11W | ||

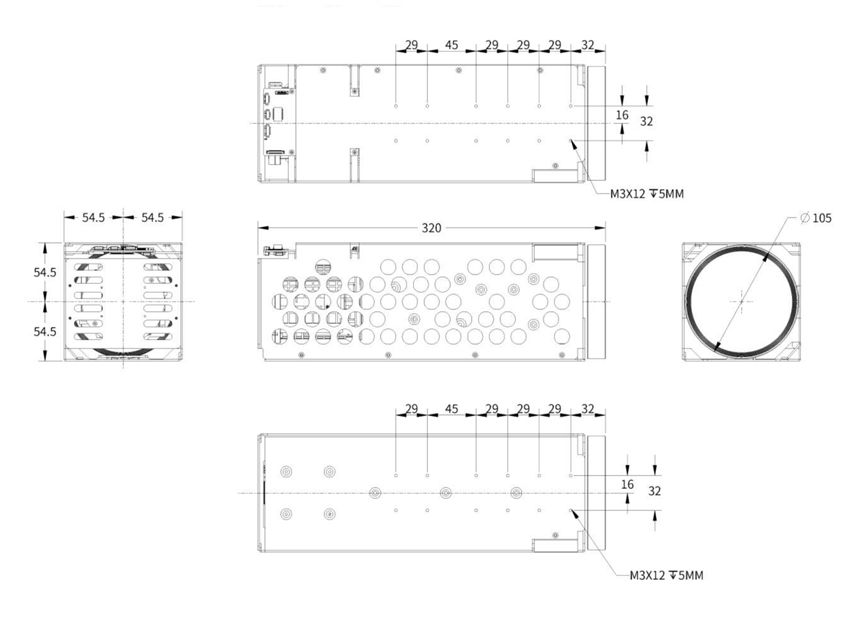

| Dimansyon (L*W*H) | Approx. 320mm*109mm*109mm | ||
| Pwa | 3.1kg | ||
Rezo koòdone
| Lèt | Nimewo PIN | Non PIN | Deskripsyon |
| J2_4pin koòdone Ethernet | 1 | Ethrx - | Adaptatif Ethernet Port, entènèt RX - |
| 2 | Ethrx+ | Adaptatif Ethernet Port, entènèt RX+ | |
| 3 | Ethtx - | Adaptatif Ethernet Port, entènèt TX - | |
| 4 | Ethtx+ | Adaptatif Ethernet Port, Entènèt TX+ | |
| J3_6pin Power & UART Entèfas | 1 | Dc_in | DC12V |
| 2 | YD | YD | |
| 3 | Rxd1 | TTL Nivo 3.3V, Pelco Pwotokòl | |
| 4 | Txd1 | TTL Nivo 3.3V, Pelco Pwotokòl | |
| 5 | Rxd0 | TTL Nivo 3.3V, Pwotokòl Visca | |
| 6 | Txd0 | TTL Nivo 3.3V, Pwotokòl Visca | |
| J1_5pin koòdone odyo | 1 | Audio_out | Audio soti (liy soti) |
| 2 | YD | YD | |
| 3 | Audio_in | Audio nan (liy nan) | |
| 4 | YD | YD | |
| 5 | NC | NC |
LVDS koòdone
| Pò | Nonb | Non PIN | Deskripsyon |
| J4_30pin LVDS koòdone (menm jan ak Sony 30pin koòdone dijital) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | YD | YD | |
| 10 | YD | ||
| 11 | YD | ||
| 12 | YD | ||
| 13 | DC | DC Sòti (DC+7V ~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | Uart1_tx | TTL Nivo 3.3V, Pwotokòl Visca, menm nan TXD0 sou pò J3_6pin. Men li pa ka konekte an menm tan. | |
| 19 | Uart1_rx | TTL Nivo 3.3V, pwotokòl viska, menm bagay la tou pou RXD0 sou pò J3_6pin. Men li pa ka konekte an menm tan. | |
| 20 | YD | YD | |
| 21 | Txout0 - | ||
| 22 | Txout0+ | ||
| 23 | Txout1 - | ||
| 24 | Txout1+ | ||
| 25 | Txout2 - | ||
| 26 | Txout2+ | ||
| 27 | Txoutclk - | ||
| 28 | Txoutclk+ | ||
| 29 | Txout3 - | ||
| 30 | Txout3+ |
