12MP/4K 3.5x Zoom Starlight NDAA Rezo UAV Kamera Modil
|
Modèl |
Sg - ucm8003nkL |
||||
|
Capteur |
Capteur imaj |
1/2.3 "Sony Starvis Pwogresis eskanè CMOS |
|||
|
Piksèl efikas |
Approx. 12.47 megapiksèl |
||||
|
Lanti |
Longè fokal |
3.85mm ~ 13.4mm, 3.5x rale optik |
|||
|
Ouverture |
F2.4 ~ f5.03 |
||||
|
Jaden de vi |
H: 77.6 ° ~ 25.9 ° |
||||
|
Fèmen distans konsantre |
1m ~ 2m (lajè ~ tele) |
||||
|
Vitès rale |
Approx. 2.5s (optik lajè ~ tele) |
||||
|
Dori Distans (Imen) |
Dekouvri |
Obsève |
Rekonèt |
Idantifye |
|
|
346m |
137m |
69m |
34m |
||
|
Videyo |
Konpresyon |
H.265/H.264/H.264H/MJPEG |
|||
|
Streaming kapasite |
3 sous dlo |
||||
|
Rezolisyon |
50Hz: 10fps@12MP (4000 × 3000), 25fps@8mp (3840 × 2160) 60Hz: 10fps@12MP (4000 × 3000), 30fps@8mp (3840 × 2160) |
||||
|
Pousantaj ti jan videyo |
32kbps ~ 16mbps |
||||
|
Oto |
AAC / MP2L2 |
||||
|
Rezo |
Pwotokòl Rezo |
IPv4, IPV6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPOE, DNS, DDNS, UPNP, IGMP, ICMP, |
|||
|
API |
Onvif, HTTP API, SDK |
||||
|
Navigatè entènèt |
Sa vle di, kwen, firefox, chrome |
||||
|
Izaje |
Jiska 20 itilizatè, 2 nivo: administratè, itilizatè |
||||
|
Stokaj |
Kat TF, jiska 1TB |
||||
|
Multikast |
Soutni |
||||
|
Ajou |
Soutni |
||||
|
Evènman Jeneral |
Mouvman, manipilasyon, kat SD, rezo |
||||
|
Fonksyone |
Smart swiv, snapshot, anrejistreman videyo, boutèy demi lit vòl, GPS kouvri enfòmasyon, elatriye. |
||||
|
S/n rapò |
≥55dB (Agc Off, pwa sou) |
||||
|
Minimòm ekleraj |
Koulè: 0.01lux/f2.4; |
||||
|
Rediksyon bri |
2d/3d |
||||
|
Mòd ekspoze |
Oto, priyorite vole, priyorite jwenn, manyèl |
||||
|
Konpansasyon Ekspozisyon |
Soutni |
||||
|
Vitès vole |
1/3 ~ 1/30000s |
||||
|
Blc |
Soutni |
||||
|
HLC |
Soutni |
||||
|
Wdr |
Soutni |
||||
|
Balans blan |
Auto, manyèl, andedan kay la, deyò, ATW, lanp sodyòm, lanp lari, natirèl, yon sèl pouse |
||||
|
Jou/lannwit |
Elektrik, ICR (Auto/Manyèl) |
||||
|
Mòd konsantre |
Auto, manyèl, semi oto, vit oto, vit semi oto, yon sèl pouse AF |
||||
|
Elektwonik defog |
Soutni |
||||
|
Fini |
Soutni |
||||
|
EIS |
Soutni |
||||
|
Digital Zoom |
16x |
||||
|
Kontwòl ekstèn |
TTL, konpatib ak pwotokòl visca |
||||
|
Koòdone |
4Pin Ethernet Port, 6pin Power & UART Port ， 5pin Audio Port. |
||||
|
Pwotokòl Kominikasyon |
Sony viska, Pelco D/P |
||||
|
Kondisyon opere |
- 30 ° C ~+60 ° C/20%a 80%RH |
||||
|
Kondisyon depo |
- 40 ° C ~+70 ° C/20% a 95% RH |
||||
|
Ekipman pou pouvwa |
DC 12V |
||||
|
Konsomasyon pouvwa |
Pouvwa estatik: 3.5W, Espò Pouvwa: 4.5W |
||||
|

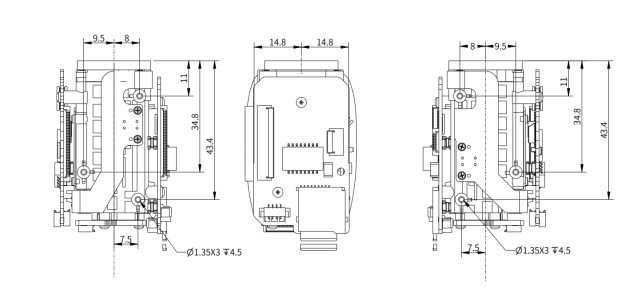

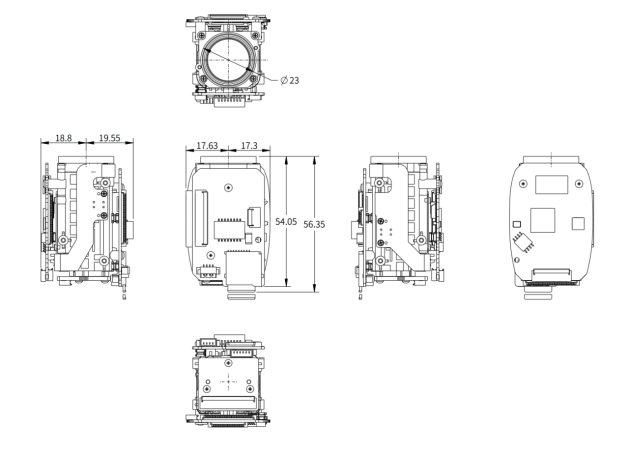

Dimansyon (L*W*H) |
56.3mm*35mm*39mm |
||||
|
Pwa |
55g |
||||
