640x512 tèmik rezo kamera modil ak 30 ~ 180mm lantiy motè
|
Modèl |
Sg - tcm06n2 - m30180 |
|
|
Capteur |
Capteur imaj |
Mikrobolomèt Vox unooled |
|
Rezolisyon |
640 × 512 |
|
|
Gwosè pixel |
12μm |
|
|
Spectral Range |
8 ~ 14μm |
|
|
Netd |
≤40MK@25 ℃, F#1.0 |
|
|
Lanti |
Longè fokal |
30 ~ 180mm lantiy motè |
|
Zoom optik |
6x |
|
|
Digital Zoom |
8x |
|
|
F valè |
F1.0 ~ f1.4 |
|
|
FOV |
14.59 ° × 11.69 ° ~ 2.44 ° × 1.96 ° |
|
|
Videyo |
Konpresyon |
H.265/h.264b/h.264m/h.264h/mjpeg |
|
Snapshot |
JPEG |
|
|
Koulè pseudo |
Sipò: Blan cho, nwa cho, fè wouj, lakansyèl 1, fulgurite, lakansyèl 2, fizyon, ble wouj, jòn, Aktik, tenti |
|
|
Kouran dlo |
Main Stream: 25/30fps@1280 × 1024, 25/30fps@1280 × 720, 25/30fps@640 × 512 Sub - Stream: 25/30fps@640 × 512, 25/30fps@352 × 288 |
|
|
Rezo |
Pwotokòl Rezo |
IPv4, IPV6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPOE, DNS, DDNS, UPNP, IGMP, ICMP, |
|
Enteroperabilite |
Onvif, HTTP API, SDK, GB28181 |
|
|
Max. Koneksyon |
20 |
|
|
Enfòmasyon |
Evènman Jeneral |
Mouvman, manipilasyon, kat SD, rezo |
|
IVS fonksyon |
Tripwire, deteksyon kwa kloti, entrizyon, objè abandone, vit - k ap deplase, deteksyon pakin, estimasyon rasanbleman foul moun, ki manke objè, deteksyon flannen. |
|
|
Deteksyon dife |
Soutni |
|
|
Koòdone |
Ethernet |
4Pin Ethernet Port, 10m/100m Self - Adaptasyon |
|
Videyo Analog |
1ch CVBS |
|
|
Alam nan/soti |
1/1 |
|
|
Audio nan/soti |
1/1 |
|
|
Rs485 |
Soutni |
|
|
Rezolisyon |
50Hz: 25fps@(1280 × 1024) |
|
|
Kapasite depo |
Mikwo SD/SDHC/SDXC kat (jiska 1TB) depo kwen, ftp, NAS |
|
|
Ekipman pou pouvwa |
DC 12V, 1A |
|
|
Kondisyon opere |
- 30 ° C ~+60 ° C/20%a 80%RH |
|
|
Kondisyon depo |
- 40 ° C ~+70 ° C/20% a 95% RH |
|
|

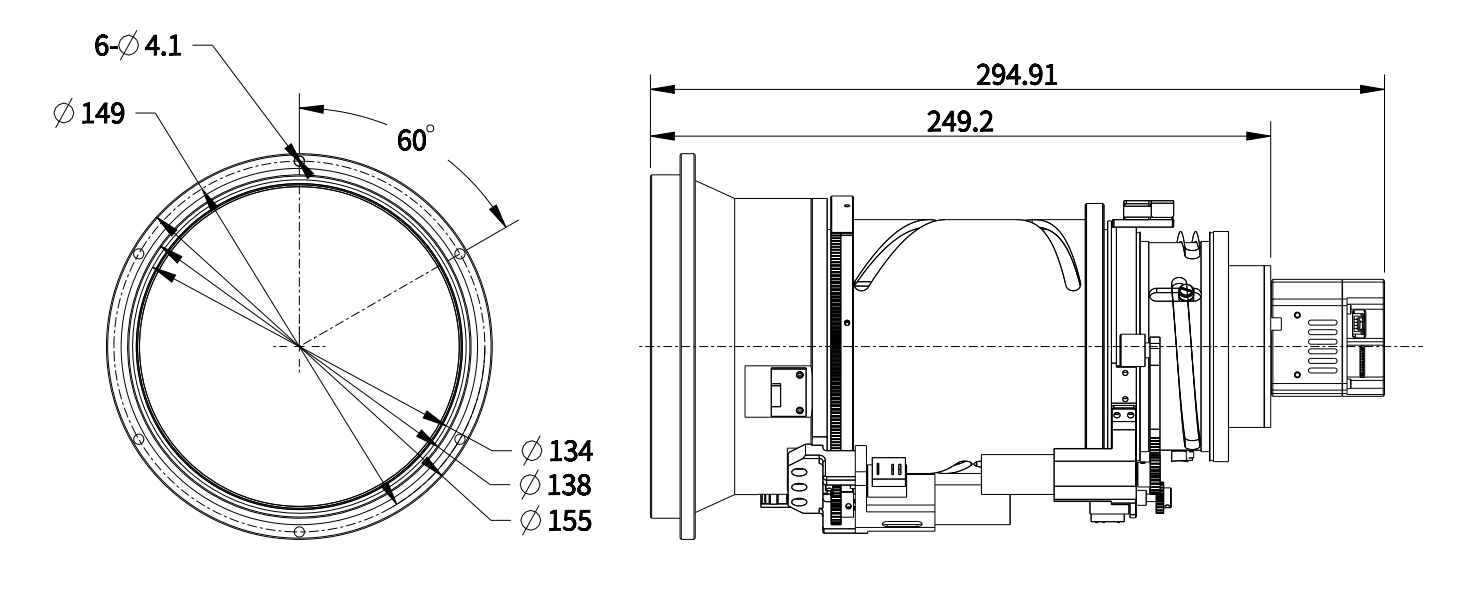

Dimansyon (L*W*H) |
Approx. 295mm*155mm*155mm |
|
|
Pwa |
Approx. 3.2kg |
|
