12um 640x512 USB pwodiksyon kontra enfòmèl ant gwosè tèmik
|
Nimewo modèl |
Sg - htm06u2 - t9 |
Sg - htm06u2 - t15 |
Sg - htm06u2 - t19 |
Sg - htm06u2 - t25 |
|
Modil tèmik |
||||
|
Capteur imaj |
Vox unooled ranje plan fokal |
|||
|
Max. Rezolisyon |
640 × 512 |
|||
|
Pousantaj ankadreman |
Reglabl, 6Hz a 30Hz |
|||
|
Entèval pixel |
12μm |
|||
|
Repons Waveband |
8μm a 14μm |
|||
|
Netd |
≤ 40MK (@ 25 ° C), F# = 1.0 |
|||
|
Lantiy (longè fokal) |
9.1mm |
15mm |
19mm |
25mm |
|
F Nimewo |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Ifov |
1.3mrad |
0.8mrad |
0.6mrad |
0.48mrad |
|
Jaden de vi (h × v) |
48.3 ° × 38.6 ° |
29.3 ° × 23.4 ° |
22.8 ° × 18.4 ° |
17.46 ° × 14.01 ° |
|
Min. Konsantre distans |
2m |
5m |
7m |
8m |
|
Mezi Tanperati |
||||
|
Range Tanperati |
- 20 ° C ~+150 ° C & 100 ° C ~ 550 ° C |
|||
|
Presizyon tanperati |
Max (± 2 ° C, ± 2%) nan tanperati anbyen 25 ° C ak tanperati objè pi wo a 0 ° C |
|||
|
Distans tanperati (ki baze sou 0.65 × 0.65m) |
10m (pi lwen) |
15m (pi lwen) |
20m (pi lwen) |
25m (pi lwen) |
|
Règ Tèmografi |
3 Kalite Règleman Mezi Tanperati, 21 Règ (10 pwen, 10 rejyon yo, ak 1 liy) |
|||
|
Done pwodiksyon |
Done tanperati 16bit |
|||
|
Imaj ekspozisyon |
||||
|
Ajisteman kontras |
Wi |
|||
|
Ajisteman klète |
Wi |
|||
|
Palèt |
15 palèt koulè reglabl, default blan cho |
|||
|
FFC (Flat Field Koreksyon) Mode |
Auto, manyèl, koreksyon ekstèn |
|||
|
DDE |
Wi |
|||
|
Jeneral |
||||
|
Materyèl Entèfas |
USB2.0 FPC |
|||
|
Pouvwa |
DC 5V ± 5% |
|||
|
Konsomasyon pouvwa |
≤0.55W |
≤0.55W |
≤0.55W |
≤0.65W |
|
Vibration & chòk |
Vibration: sinusoidal Vibration, 20 m/s ², 3 - aks Chòk: mwatye sinis vag, 30 g/11 ms, 3 - aks 6 - fason |
|||
|

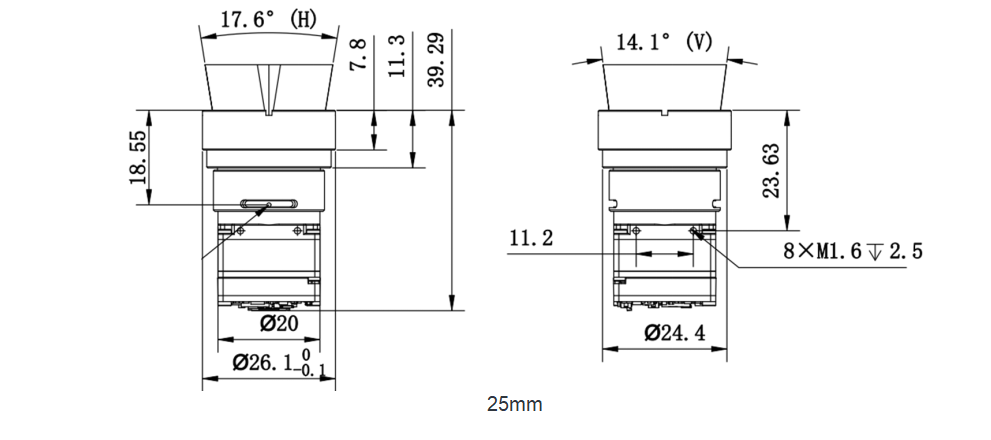

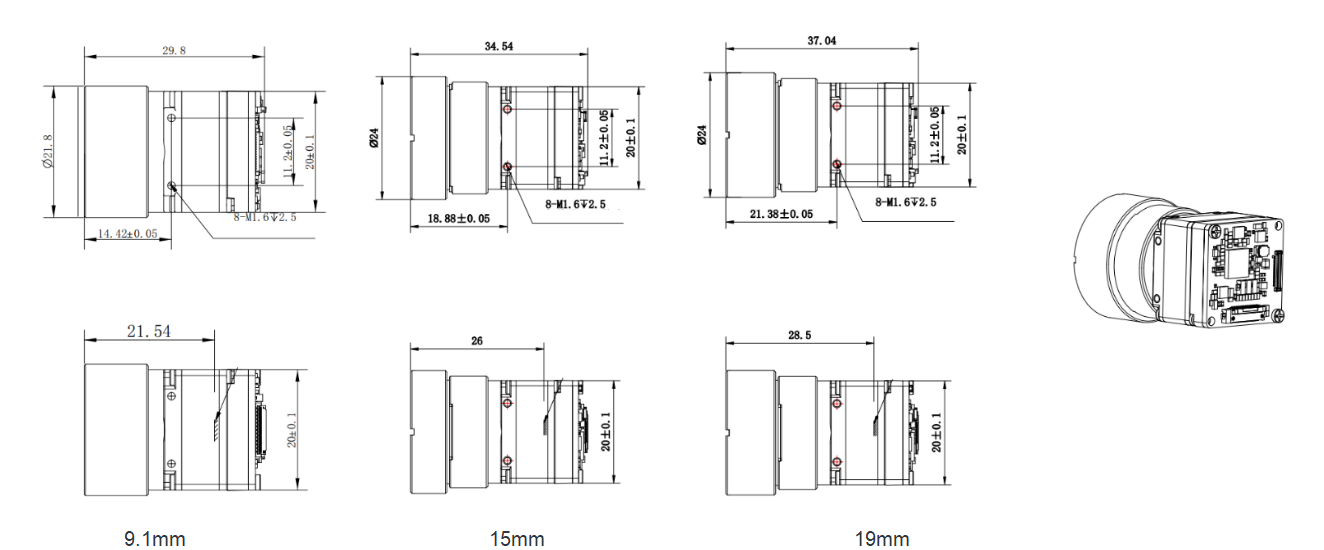

Dimansyon (mm) |
29.8*20*20mm |
34.54*20*20mm |
37.04*20*20mm |
39.29*20*20mm |
|
Pwa |
≤22g |
≤28g |
≤32g |
≤33g |
|
Travay tanperati |
- 40 ° C ~ 70 ° C |
|||
