12um 640x512 USB (CVBS/Kalite - C/MIPI) Sòti kontra enfòmèl ant Modil tèmik

Nimewo modèl

Sg - vtm06u (c, m) 2 - x

Sg - vtm03u (c, m) 2 - x

Modil tèmik

Capteur imaj

Vox unooled ranje plan fokal

Max. Rezolisyon

640 × 512

Pousantaj ankadreman

≤ 50Hz

Entèval pixel

12μm

Repons Waveband

8μm a 14μm

Netd

≤ 50MK (@ 300k), F# = 1.0

Lantiy (longè fokal)

9.1/13/19/25/35mm

9.1/13/25/35mm

F Nimewo

F1.0

F1.0

Jaden de vi (h × v)

45.8 ° × 37.3 °/32.9 ° × 26.6 °/22.6 ° × 18.2 °/

17.3 ° × 13.8 °/12.5 ° × 10.0 °

28.7 ° × 21.7 °/20.1 ° × 15.1 °/

10.5 ° × 7.9 °/7.5 ° × 5.6 °

Imaj ekspozisyon

Digital Zoom

1 ~ 8x

Koreksyon imaj

Koreksyon vole

Klète & kontras

Oto

Palèt koulè

Chalè blan, chalè nwa, fè wouj, lakansyèl

Pwosesis imaj

Ki pa - koreksyon inifòmite, filtraj dijital pou rediksyon bri, amelyorasyon detay dijital

Videyo

Fòma videyo

USB Sòti pa default, CVBS/Kalite - C/MIPI pou si ou vle

Materyèl Entèfas

9pin USB oswa CVBS, 20pin MIPI

Jeneral

Pouvwa

DC 4.5V ~ 18V (overvoltage, undervoltage, ranvèse pwoteksyon opinyon)

Konsomasyon pouvwa

≤1.2W

Travay tanperati

- 20 ° C ~ 55 ° C

Tanperati depo

- 45 ° C ~ 60 ° C

Imidite

5 ~ 95%, ki pa - kondanse

Vibration - rezistan

6.06g, Vibration o aza, tout direksyon aksyal

Chòk - rezistan

Retounen Peak Sawtooth, 200g/4ms, 3 - Aks 6 - Way

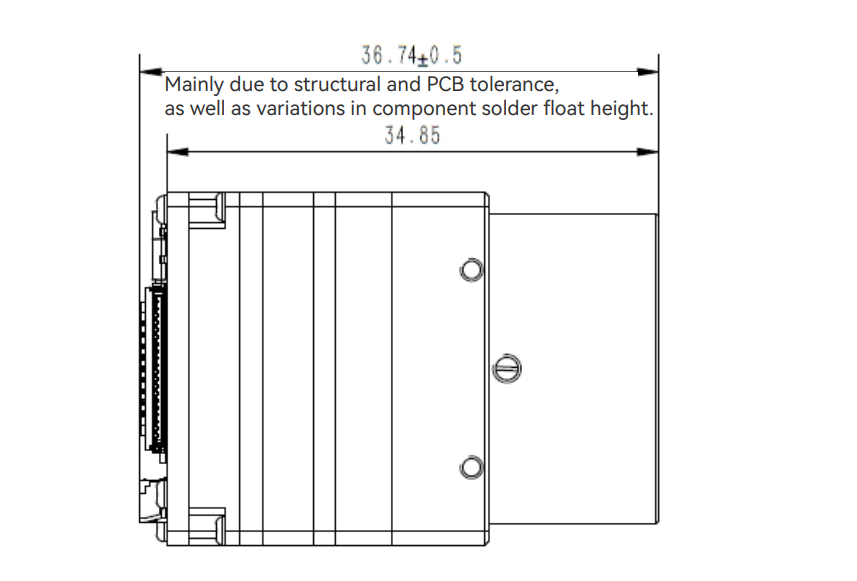

Dimansyon (mm)

38.14*25*25mm (39.55*25*25mm pou lantiy 9.1mm)

Pwa

≤ 42g ± 3g (≤38g ± 3g pou lantiy 9.1mm)
